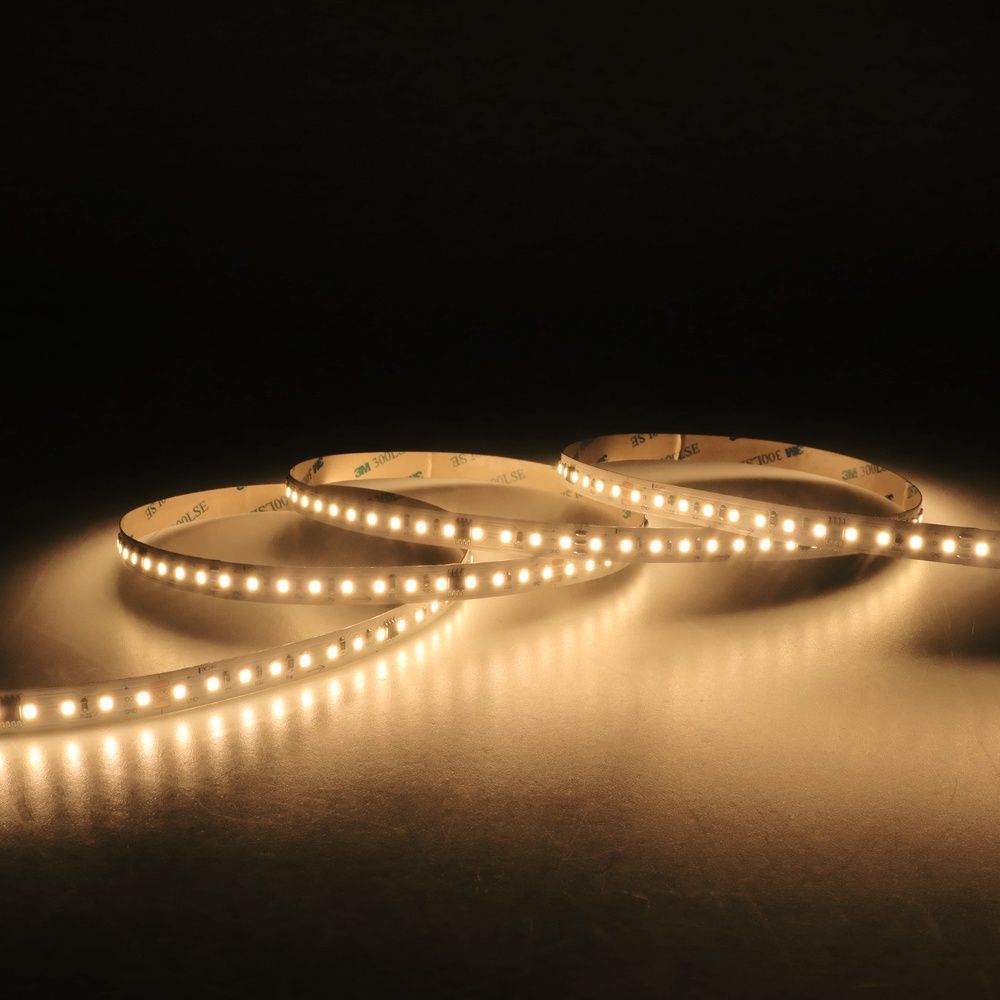

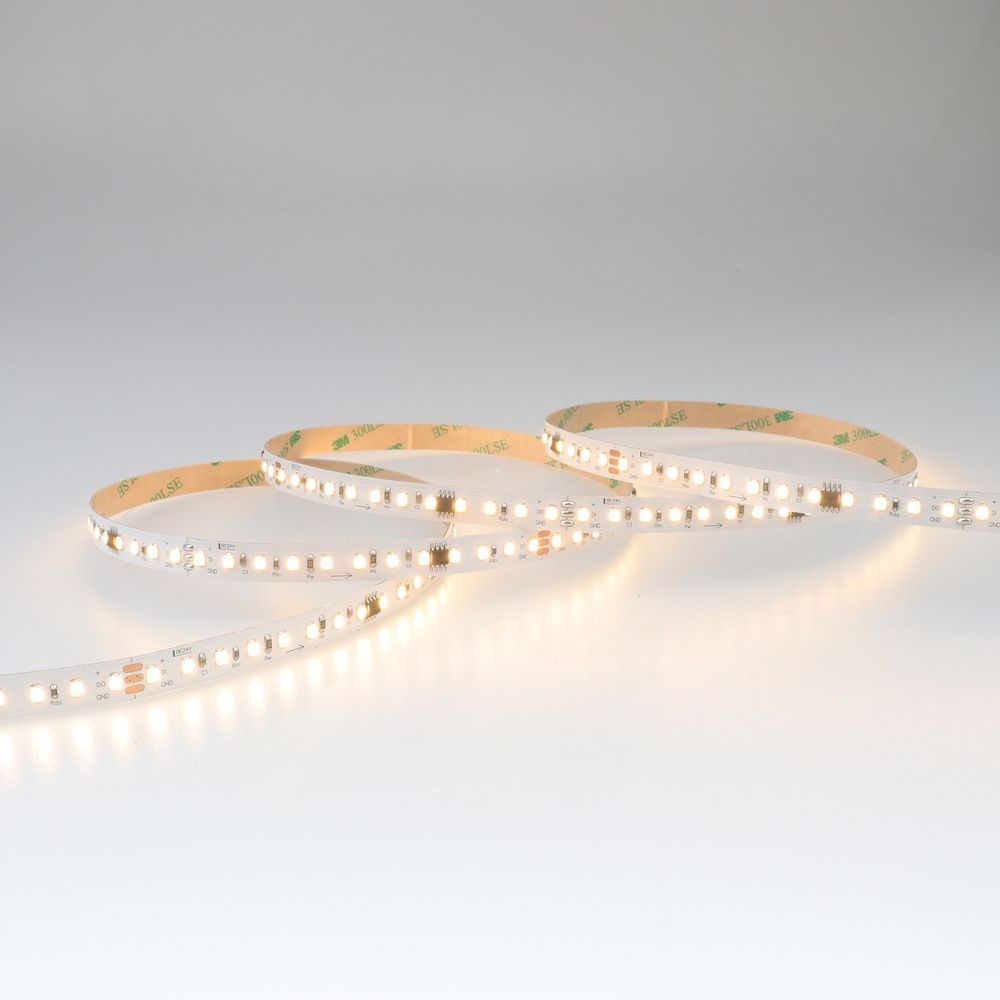

Buy Addressable LED strip Ustrip LED120-2835-W40-24V-14.4W-P10-UCS1903-IP65 daylight white a000082 in the online store Ulight

16 €/m

Order from 5 m

Quantity	40
SKU	a000082
Product Type	LED strip
Series of LED strip	SPI hermetically sealed
Color	Daylight white
Color Temperature	4000 K
Luminous Flux at 1m, lm/m	1200
Efficiency, lm/W	83
Managed Channels	1 CH (1 channel Mono)
Beam Angle	120 °
LED Type	2835
LEDs, pcs/m	120
LEDs Per Pixel	12
Pixels Per Metre	10
IP Rating	IP65
Voltage	24 V
Power at 1m, W/m Power is one of the criteria for evaluating the brightness of an LED strip. Traditionally, it is believed that the amount of light directly depends on the power of the strip. White Ulight strips produce from 80 to 178 lm per 1 W of power. Conventionally, it is considered that 7 W of the strip replaces a 100 W incandescent lamp. In addition, the power of the strip must be taken into account when choosing a power source. Strips with a power of up to 9 W/m do not require additional heat dissipation. Strips with a power higher than 9 W/m should be placed on any aluminum profile to dissipate heat. Particularly powerful strips above 15 W/m should be placed only on a massive aluminum profile. Do not allow the tape to heat up to +60 °	14.4
Cut Points, mm	100.00
Length, mm	5000
Width, mm	12
Height, mm	4.5
Brand	Ulight
Warranty	1 year

Advice

Consultations, selection and calculation of equipment for organizing lighting systems for various projects and tasks:
