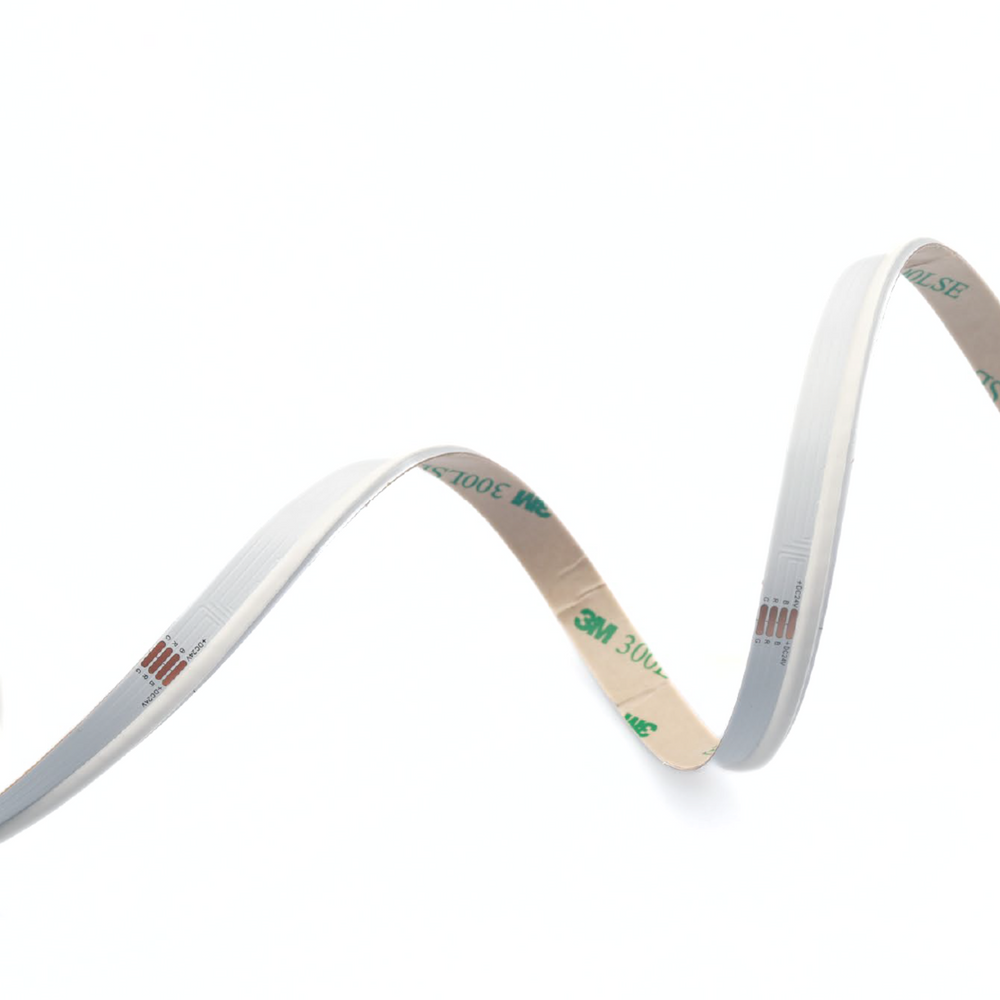

Buy Ustrip LED630-ECOB-RGB-24V-9W-10mm - RGB end glow LED strip a000106 in the online store Ulight

RGB multicolor

11 €/m

%

Sign in to see your personal discount

SKU	a000106
Product Type	LED strip
Series of LED strip	COB open side
Color	RGB multicolor
Luminous Flux at 1m, lm/m	180
Efficiency, lm/W	20
Managed Channels	3 CH (3 RGB channels)
Beam Angle	180 °
LED Type	COB
LEDs, pcs/m	630
IP Rating	IP20
Voltage	24 V
Power at 1m, W/m Power is one of the criteria for evaluating the brightness of an LED strip. Traditionally, it is believed that the amount of light directly depends on the power of the strip. White Ulight strips produce from 80 to 178 lm per 1 W of power. Conventionally, it is considered that 7 W of the strip replaces a 100 W incandescent lamp. In addition, the power of the strip must be taken into account when choosing a power source. Strips with a power of up to 9 W/m do not require additional heat dissipation. Strips with a power higher than 9 W/m should be placed on any aluminum profile to dissipate heat. Particularly powerful strips above 15 W/m should be placed only on a massive aluminum profile. Do not allow the tape to heat up to +60 °	9.0

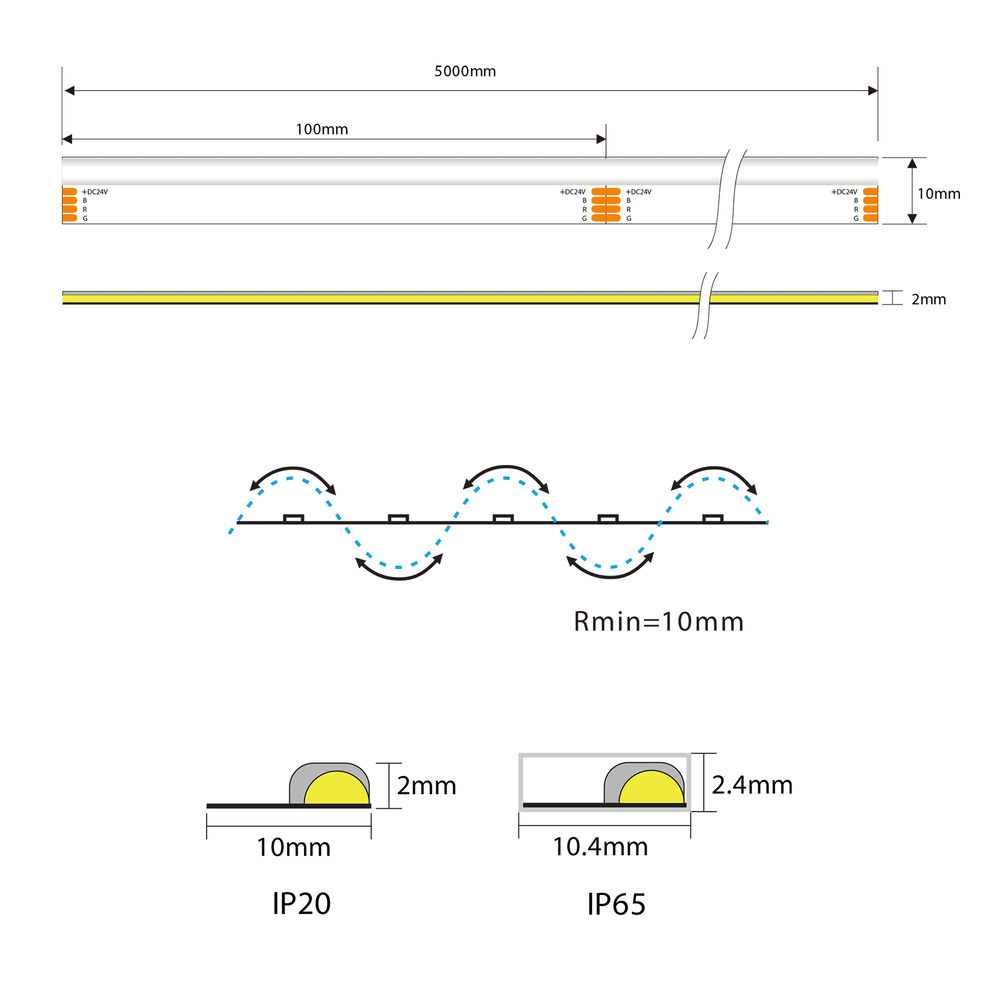

Cut Points, mm	100.00
Length, mm	5000
Width, mm	10
Height, mm	2.0
Brand	Ulight
Warranty	5 years
